Fallback

We're going to look at a real world example now and create a custom streaming profile that will allow the video player to run a video in any browser.

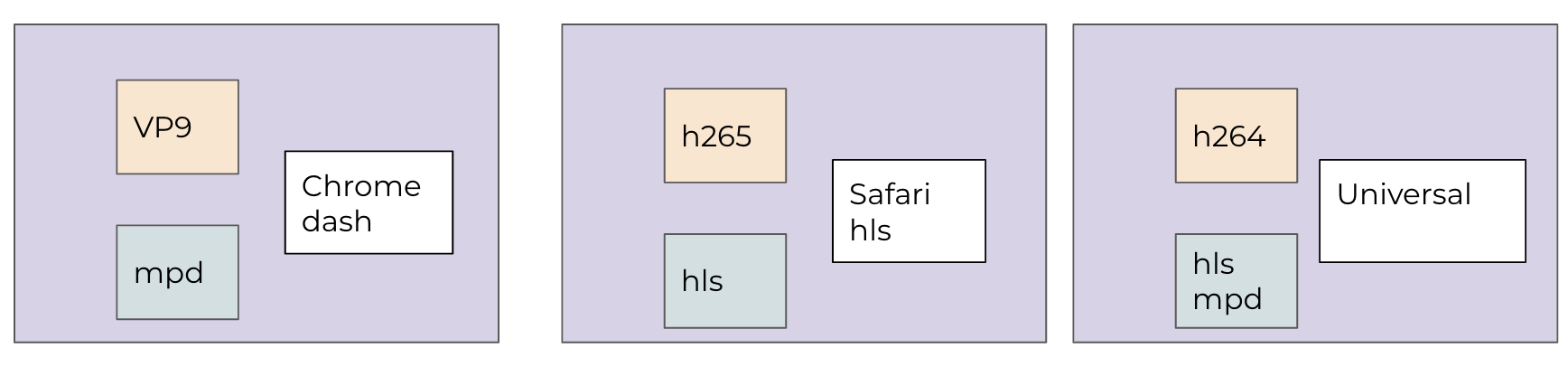

The chart below shows the optimal codec and format for each browser with a fallback that should work in any browsr.

• Chrome: DASH, VP9
• Safari: HLS, h265
• Universal: HLS and mpd, h264

Exercise: Look at Existing Profiles

It will be useful to list and read profiles provided by Cloudinary. We'll see the full-hd profile that we used earlier.

node adaptive-streaming/fallback/list-streaming-profiles.js

cloudinary.api
  .list_streaming_profiles()

With this list we can use it as a template to build a custom profile.

The next step is the output an existing profile.

node adaptive-streaming/fallback/details-predefined-hd-profile.js

cloudinary.api
  .get_streaming_profile('hd')
  .then(result => console.log(JSON.stringify(result, null, 1)))

Exercise: Create 3 Custom Profiles

We're going to create 3 custom profiles to match the 3 options in discussed above

• h264 see adaptive-streaming/fallback/create-custom-profile-h264.js
• h265 see adaptive-streaming/fallback/create-custom-profile-h265.js
• vp9 see adaptive-streaming/fallback/create-custom-profile-vp9.js

What we've done is copy the hd profile transformations and modified the codecs.

Now we can upload the video with our new custom profiles.

node adaptive-streaming/fallback/prepare.js

As we did above with the Cloudinary profile, we upload with our 3 new profile.

// create dash/vp9 (chrome/ff), hls/h265(apple), hls/h264 (universal) custom profiles
const upOptions = {
  resource_type: 'video',
  eager: [
    { streaming_profile: 'training_hd_vp9', format: 'mpd' },
    { streaming_profile: 'training_hd_h264', format: 'm3u8' },
    { streaming_profile: 'training_hd_h265', format: 'm3u8' }
  ],
  eager_async: true,
  eager_notification_url:
    'https://webhook.site/17a3d46c-5d18-46b0-ab6c-94b12d7f645c',
  public_id: 'whale',
  invalidate: true
}
cloudinary.uploader
  .upload('./assets/video/humpbackwhale_singing.webm.360p.vp9.webm', upOptions)
  .then(result => {
    console.log(result)
  })
  .catch(error => {
    console.log(error)
  })

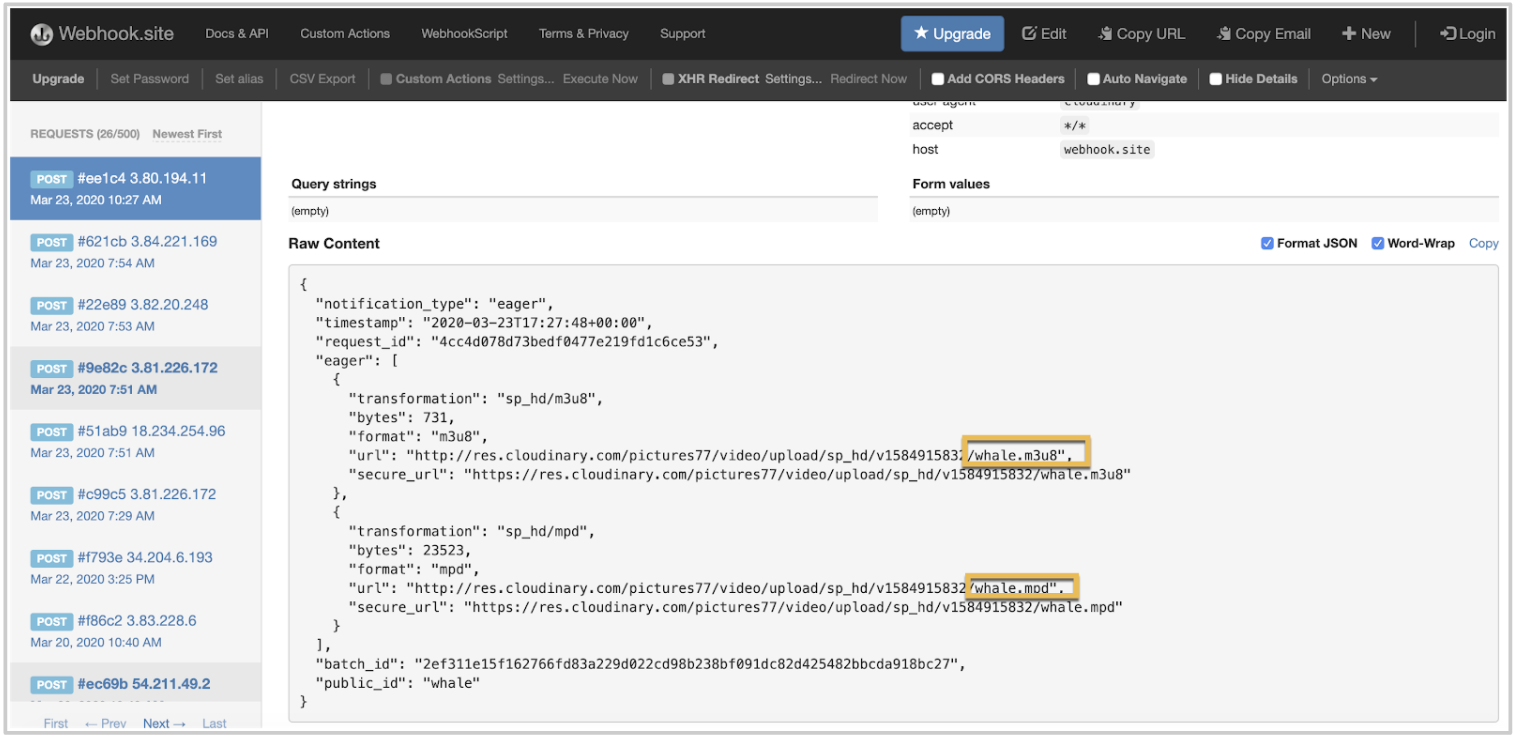

The webhooks response allows us to see the creation of the m3u8 and mpd files.

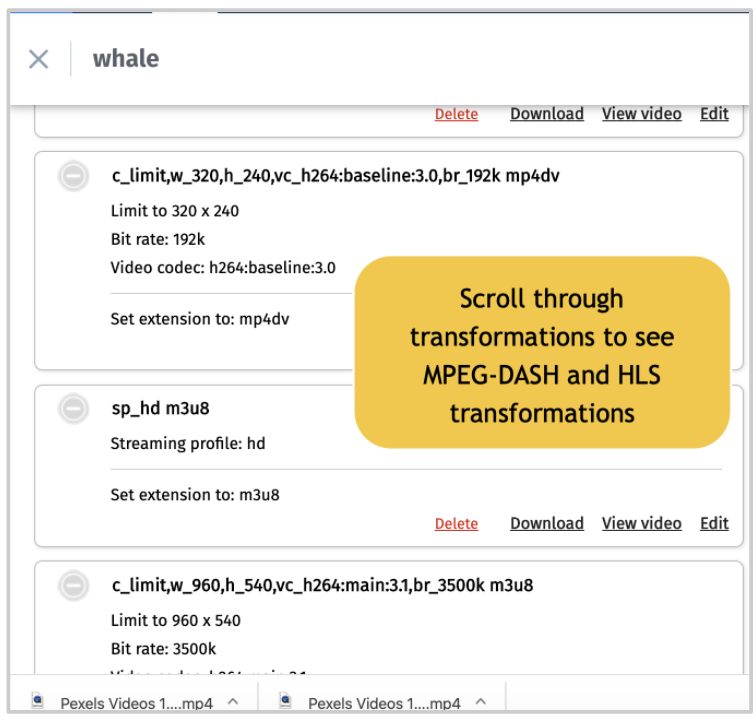

Once the processing is complete, we can go to the Media Library and click through transformations for the video to find derived assets and we should see a list of transformations that support the streaming profiles created.

Exercise: Use Fallback

Now we can use the Video Player to load all 3 custom profiles and stream in any browser.

Look at the javscript code in adaptive-streaming/fallback/index.html. You can see all 3 sourceTypes and the browser will choose the first one it can use. You can see that the final fallback is mp4 which is not using any adaptive streaming.

You can try this out on the Cloudinary training server if you are not using gh-pages or Chrome incognito mode:

https://cloudinary-training.github.io/advanced-concepts/adaptive-streaming/fallback/index.html

    const sources = {
      publicId: "whale",
      sourceTypes: ["dash/vp9", "hls/h265", "hls/h264", "mp4"],
      sourceTransformation: {
        "dash/vp9": [
          {
            streaming_profile: "training_hd_vp9"
          }
        ],
        "hls/h265": [
          {
            streaming_profile: "training_hd_h265"
          }
        ],
        "hls/h264": [
          {
            streaming_profile: "training_hd_h264"
          }
        ],
        "mp4": [
          {
            raw_transformation: "q_auto"
          }
        ]
      }
    };
    const player = cld.videoPlayer("example-player")
    player.source(sources);

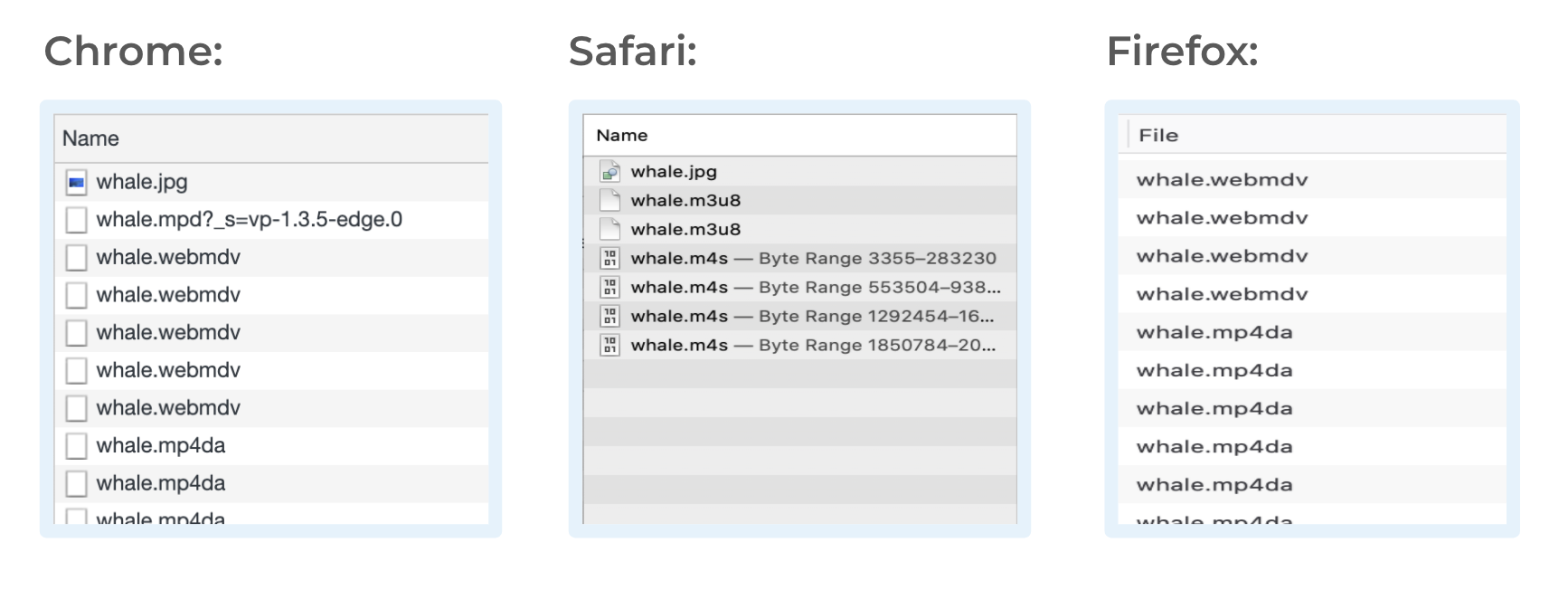

Try this out in all browsers and confirm they are using adaptive streaming and that they are all able to stream the video.

Exercise: DASH only

What happens if we leave out the streaming profile for HLS? Look at the adaptive-streaming/fallback/dash-only.html web page. Open it in the different browsers. Is there fallback to mp4?

sourceTypes: ["dash/vp9","mp4"],
